Every additive manufacturing enthusiast knows the tedious pre-print routine: adjusting bed levels, tensioning sagging belts, and watching filament waste pile up during multi-color purges. Traditional desktop 3D printers rely on mechanical belts and stepper motors that inevitably stretch, drift, and require frequent recalibration over time.

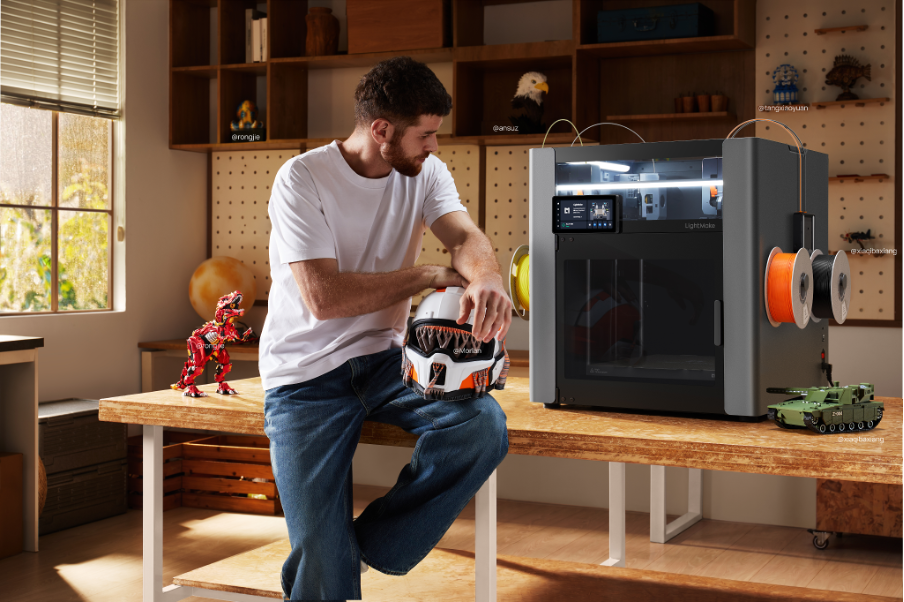

The LightMake L4 addresses core additive manufacturing bottlenecks by replacing mechanical belts and stepper motors with direct linear motors and a four-head architecture. Designed for commercial studios, print farms, and advanced makers, this system delivers ±1 micrometer precision, speeds up to 1,000mm/s, and drastically cuts material waste during multi-color or multi-material prints.
Replacing Belts with Magnetic Propulsion
Instead of relying on conventional pulleys and rubber drive belts, the LightMake L4 utilizes contactless magnetic propulsion via linear motors. Because there is no mechanical friction between the mover and stator, wear and tear are virtually eliminated, resulting in a projected operational lifespan exceeding 50,000 hours.
This drive mechanics overhaul means operators no longer need to perform routine belt re-tensioning or pulley replacements. Motion accuracy reaches an impressive ±1 micrometer with travel speeds scaling up to 1,000mm/s, ensuring long-term consistency across high-volume production cycles.
To preserve print accuracy at extreme speeds, the printer incorporates a heavy die-cast chassis paired with an active vibration-cancellation algorithm. This structural stability is demonstrated by a coin remaining balanced on its edge across the print bed throughout active printing operations.
Quad-Toolhead Efficiency and Multi-Material Printing
The core feature of the LightMake L4 is its array of four independent, vertically liftable toolheads. Each head operates autonomously, allowing users to print four identical objects simultaneously in batch mode. If a failure occurs on one toolhead, the remaining three continue operating uninterrupted.
For complex multi-color or multi-material builds, independent toolheads offer significant advantages over single-nozzle swappers. Conventional single-nozzle multi-color systems waste 40 to 90 seconds on every filament purge and swap. The L4 eliminates these purge cycles by switching directly between pre-loaded heads, saving hours on intricate prints while saving filament.
| Specification | LightMake L4 Details |
|---|---|
| Drive System | Contactless Linear Motors (Beltless) |
| Positioning Precision | ±1 Micrometer |
| Max Travel Speed | 1,000 mm/s |
| Toolhead Architecture | 4 Independent Liftable Toolheads |
| Max Nozzle Temperature | 320°C |
| Supported Materials | PLA, ABS, PETG, TPU, ASA, PVA, PET, Carbon Fiber Composites (PLA-CF, PETG-CF), PA, PC |
| Drive Lifespan Rating | 50,000+ Hours |
High-Temp Filament Support and Practical Application
Equipped with high-temperature hotends rated up to 320°C, the L4 handles standard thermoplastics alongside demanding engineering materials. Supported materials include PLA, ABS, PETG, TPU, ASA, PVA, and PET, as well as reinforced filaments like carbon fiber composites, nylon (PA), and polycarbonate (PC).
Combining flexible, rigid, or soluble support materials into a single uninterrupted build eliminates the need for manual post-processing assembly. This capability benefits small product design studios, localized manufacturing operations, and individual creators seeking reliable output without constant maintenance.
Market Availability and Public Showcases
LightMake is currently offering early-bird backing incentives for the L4 on Kickstarter, featuring discounts up to $1,100 off planned retail pricing. The company plans to showcase the machine and its broader hardware lineup at upcoming international trade events, including IFA Berlin and Formnext Frankfurt.
Frequently Asked Questions
How does linear motor technology benefit 3D printing over belt drives?
Linear motors utilize contactless magnetic propulsion, removing wear-prone belts, gears, and pulleys. This configuration eliminates belt stretching and mechanical backlashes, resulting in higher positional accuracy (±1 micrometer) and significantly lower maintenance needs over thousands of operational hours.
Can the LightMake L4 print multiple parts at once?
Yes. The four independent toolheads can run simultaneous batch jobs, producing four identical items at the same time. If one print head encounters an issue, the remaining three continue working without interrupting the batch.
What types of filaments can the LightMake L4 process?
Thanks to a 320°C max nozzle temperature, the printer handles basic materials like PLA, ABS, PETG, and TPU, as well as advanced engineering materials including carbon-fiber-reinforced composites (PLA-CF, PETG-CF), nylon (PA), polycarbonate (PC), and soluble support materials like PVA.
